200 N 3RD ELWOOD, IN 46036

765.623.3193

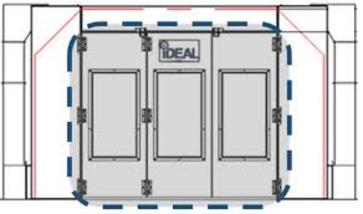

PSB-SSDD-TF-DTDK-AK

IDEAL, Side Down Draft-Tri-Fold 'Drive-Thru' Door Kit

  • Allows drive-thru configuration for IDEAL PSB-SDD model
  • White powder coat door finish- (Inside & Outside)
  • Standard w/ integrated personnel door
  • Viewing windows included
  • Heavy duty dual skin construction
  • High quality hinges, pressure latch & handles
  • Door activated shutoff switch
  • Convenient 5/16" bolt & nut assembly
  • All assembly hardware included
  • $3,099.00

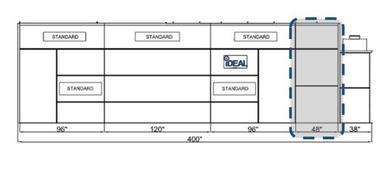

PSB-SSDD-48EPK-AK

​IDEAL, Semi & Side Down Draft - 48" Extension Panel Kit

  • 48" Solid, Rear Booth Extension
  • White powder coat panel finish - (Inside & Outside)
  • Heavy duty precision punched 18 gauge panel construction
  • Convenient 5/16" bolt & nut assembly
  • All assembly hardware included

​$1,999.00

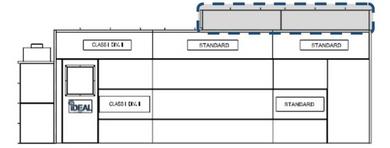

PSB-SEMIDD26B-PLENUM KIT ASSY

IDEAL, Semi Down Draft- Plenum Kit

  • Required when using direct 'gas fired' air make up (heater) with paint booth
  • Can be installed to new or existing IDEAL semi down draft paint booths
  • Bright White Powder Coat Panel Finish- (Inside & Outside)
  • Heavy Duty Precision Punched 18 Gauge Panel construction
  • Convenient 5/16" Bolt & Nut Assembly
  • All Assembly Hardware Included
  • $2,699.00

PSB-25DUCTKIT-8 KIT ASY

IDEAL, Cross Flow & Side Down Draft - 25" Exhaust Duct Kit - 8 ft.​​​

  • Provides duct work to properly exhaust PSB-PMR1088 model
  • 20 Gauge galvanized hammer seamed 'plain pipe' ducting
  • One duct end corrugated for easy assembly
  • (1 pc) Fan connection ring
  • (1 pc) 36"H x 13"Dia. solid duct w/ 32"H X 17"W clean-out door
  • (1 pc) 36"H x 13"Dia. solid 'center' duct
  • (1 pc) 24"H x 13"Dia. auto roof ventilator (ARV) protects from rain & snow
  • Self-tapping screw assembly
  • Extend duct kit height w/ additional 'center' duct section
  • $1,459.00

Home - Auto Body - Paint Spray Booths - IDEAL-SEMIDD26B-AK - Accessories

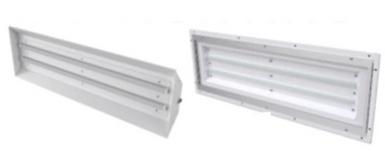

PSB-SSDD26-LED UPGRDKIT

IDEAL, PSBSSDD SDD & Semi- LED Lighting Upgrade Kit​​​

  • LDPI LED lighting upgrade kit for PSB-SDD & PSB SEMIDD Models
  • Long lasting, energy efficient LED industrial lighting
  • Reduces paint booth operational costs
  • Increases booth brightness
  • Two row LEDS providing 5,000 CCT
  • UL/ETL listed 120-277 VAC (50/60HZ) electrical
  • Direct replacement for STD. fluorescent light fixtures
  • $2,499.00

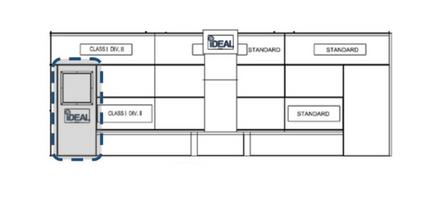

PSB-SSDD-PSDK-AK

IDEAL, Semi & Side Down Draft- Personnel Side Door Kit

  • Additional Personnel Side Door For PSB-SEMI & PSB-SDD Models
  • Bright White Powder Coat Door Finish- (Inside & Outside)
  • Personnel Door Size 30"W x 84"H
  • Viewing Window Included
  • Heavy Duty Dual Skin Construction
  • High Quality Hinges, Pressure Latch & Handles
  • Door Activated Shutoff Switch
  • Convenient 5/16" Bolt & Nut Assembly
  • All Assembly Hardware Included
  • $2,499.00
