IDEAL - PSB-AFCF23B-AK

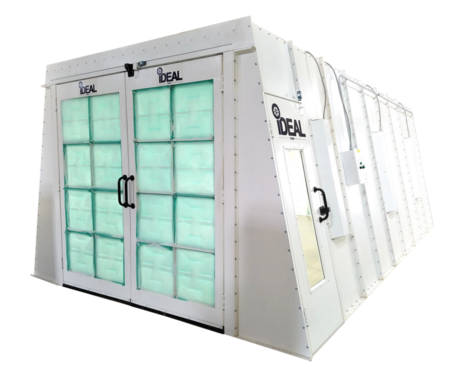

IDEAL, Cross Flow Paint Spray Booth

• Typically ships within 48 hours!

• Heavy duty precision punched 18 Gauge panel construction

• Optimal ‘cross draft’ air flow w/ CFM 9,500 @ .5 static pressure

• Tilt panel design for optimal lighting coverage

• Inside Dimensions: 22′-6″ L X 13′ W X 8′-6″ H

• Convenient 5/16” bolt & nut assembly

• Deluxe Control Panel included

• Bright White Powder Coat panel Finish – (inside & outside)

• Manometer, Solenoid Valve, Hardware & Sealant Included

• UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades

• NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard

• Premium AFC intake & exhaust filters

• (6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp

• (24ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

• Double Entry Doors w/ shutoff switches

• Personnel Door w/ viewing window & shutoff switch

• Meets NFPA 33 standards

• Optional: 1PH electrical, Personnel door kit & booth extension kits


Specs   Manual  Accessories

3 PHASE $14,699.00

1 PHASE $15,299.00
